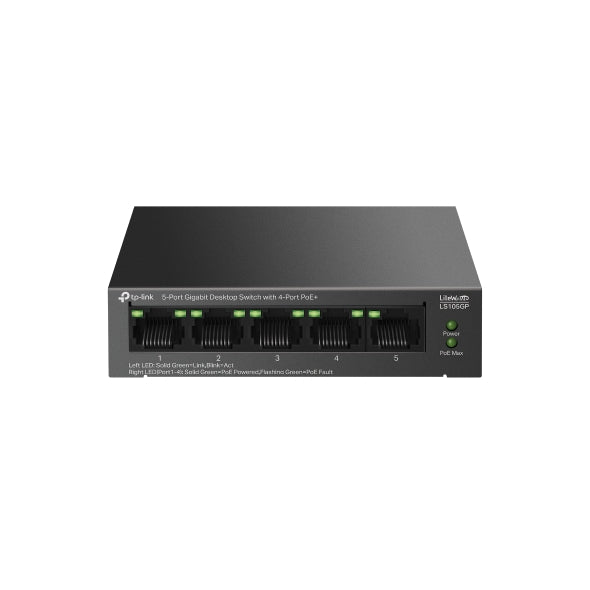

TP-Link LS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+
Expand your wired network with the TP-Link LS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+. Designed for small businesses, surveillance systems, and home networks, this unmanaged Gigabit switch delivers high-speed data transfer while powering compatible PoE devices through a single Ethernet cable.
Featuring four IEEE 802.3af/at-compliant PoE+ ports with a total PoE budget of 65W, the LS105GP is ideal for powering IP cameras, wireless access points, IP phones, and other PoE-enabled devices. With Extend Mode supporting PoE transmission up to 250 meters, PoE Auto Recovery, and a durable fanless metal housing, it provides reliable and maintenance-free networking.
Product Specifications
| Attribute | Details |
|---|---|
| Brand | TP-Link |
| Model | LS105GP |
| Product Type | Unmanaged Gigabit PoE+ Switch |
| Ports | 5 × 10/100/1000Mbps RJ45 Ports |
| PoE Ports | 4 × IEEE 802.3af/at PoE+ Ports |
| PoE Budget | 65W Total (Up to 30W per PoE Port) |
| Switching Capacity | 10Gbps |
| Packet Forwarding Rate | 7.44Mpps |
| MAC Address Table | 2K Entries |
| Jumbo Frame | 16KB |
| Special Features | Extend Mode (Up to 250m), PoE Auto Recovery, QoS, IGMP Snooping, Green Technology |
| Cooling | Fanless Silent Design |
| Housing | Metal Casing |
| Installation | Desktop or Wall Mount |
| Package Contents | 1 × TP-Link LS105GP Switch, Power Adapter, Installation Guide |
Key Features
5 Gigabit Ethernet ports for high-speed networking
4 PoE+ ports with up to 30W output per port
65W total PoE power budget
Extend Mode supports PoE transmission up to 250 meters
PoE Auto Recovery automatically reboots unresponsive powered devices
Silent fanless metal housing for reliable operation
Plug-and-play installation with no configuration required
Ideal for IP cameras, access points, IP phones, and surveillance networks
